Plug Valve

Plug Valve

Plug Valve
Plug Valve

Technology Specification:

  • The design meets the requirement of API SPEC 6A.

  • Nominal bore:1"~3"

  • Rated working pressure:6000~15000PSI

  • Rated working temp:K,L,P.R.S,T,U.V

  • Material class:AA,BB,DD,EE

  • Product specification level:PSL1~PSL3G

  • Performance requirement level:PR1

  • Suitable medium:Petroleum,Natural gas,Mud,The Cementing,Fracturing Etc.

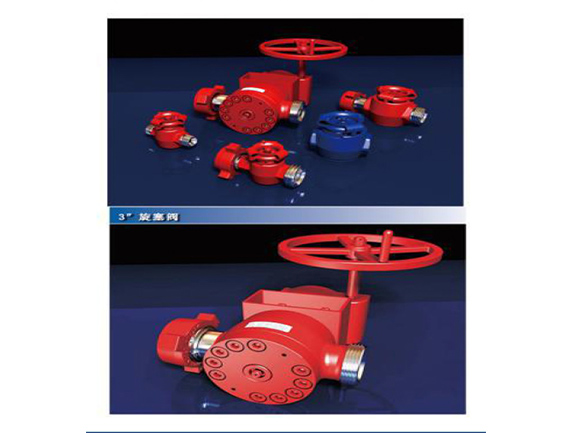

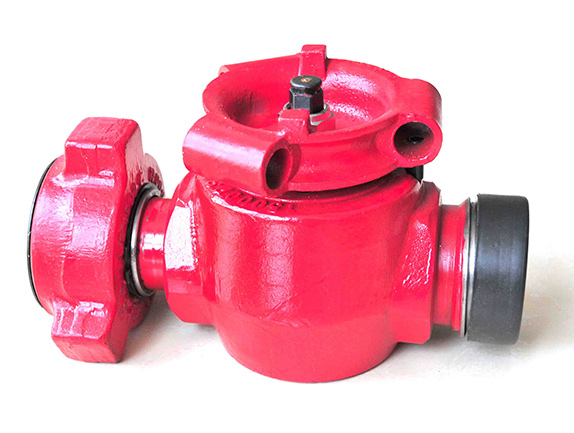

Plug valve is low torque plug valve, which is produced according to SPM technology. The valve body is forged by high-quality alloy steel, specification:1",2",3", rated working pressure 42MPa, 70MPa, 105MPa(6000,10000, 15000psi).



Contact us

Features in Design:

  • The two ends can be connected by union joint;

  • The maintenance of valve body is convenient;

  • Through plating process,the plug has excellent seal property and anti-corrosive property;

  • Visible valve body position;

  • 3"plug valve is suitable for low temperature environment.resistance.
