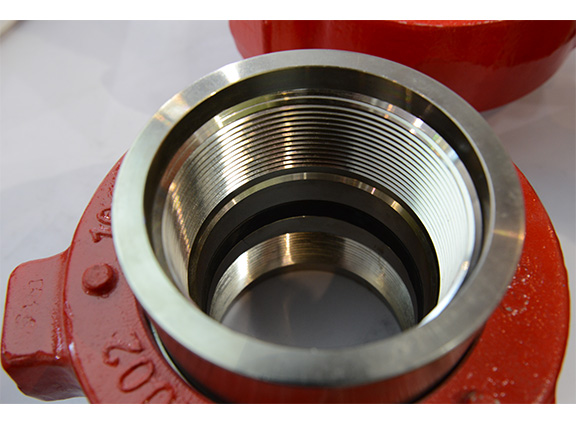

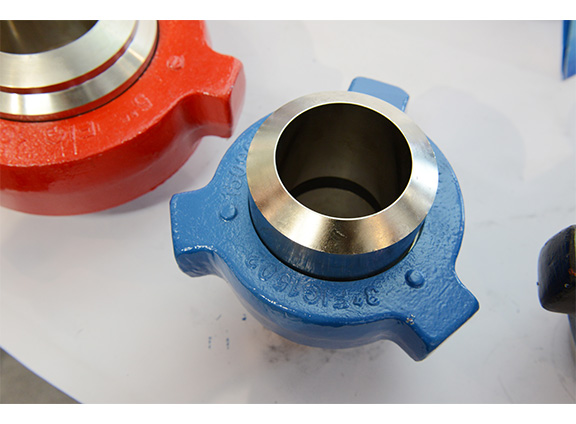

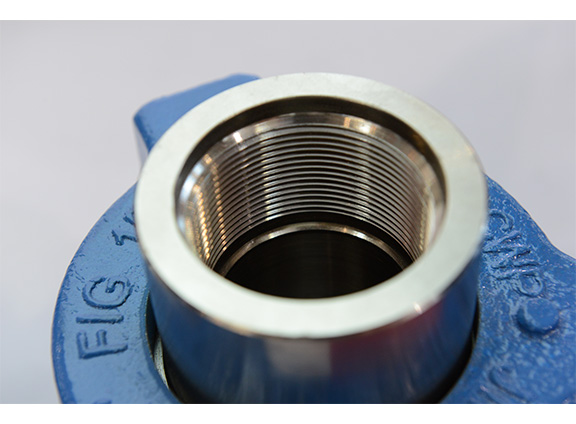

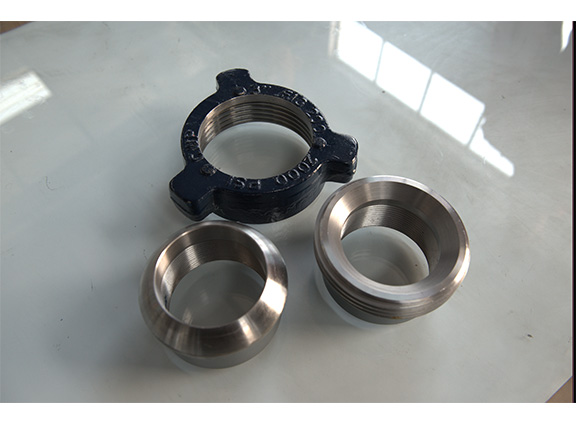

Hammer union we manufactured is used to connect kinds of manifold and lines. It can be divided into three types: threaded connection hammer union, welded hammer union, anti-hydrogen sulfide hammer union. Sizes can be from 1 inch to 4 inch, cold working pressure from 7Mpa to 140Mpa(1000psi-20000psi).
Models of threaded connection hammer unions: fig 100, fig 200, fig 206, fig 400, fig 402, fig 602, fig1002, fig 1502.
Models of welded hammer union: fig 200, fig 602, fig 1002, fig 1502, fig2002.
Models of anti-sulfur welded hammer union: fig602, fig 1002, fig1502, fig2202.
Our hammer unions are exchangeable with FMC, WECO and Kemper hammer union.

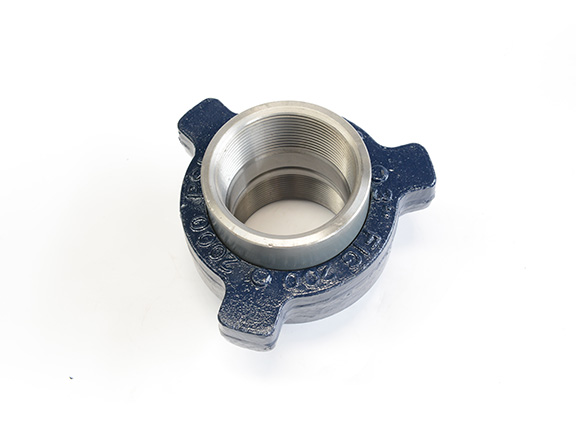

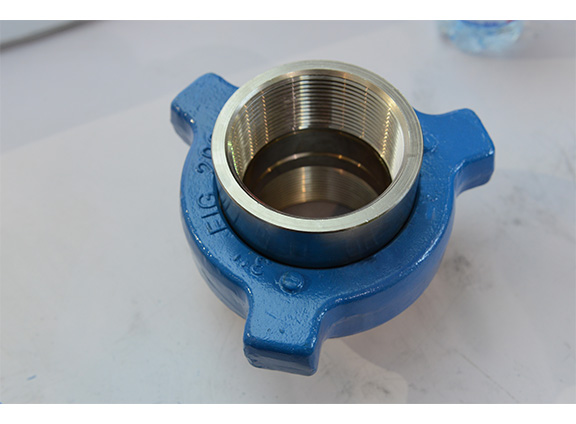

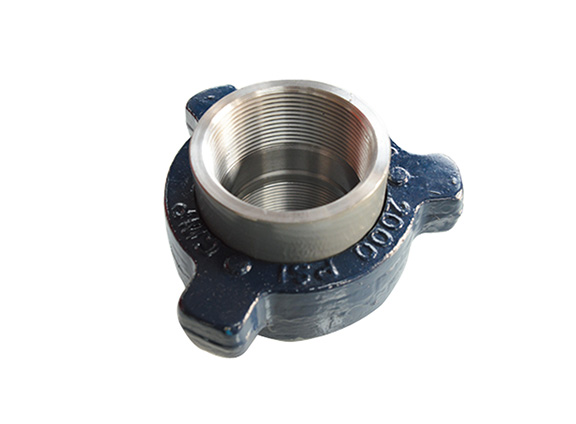

Model | Working Pressure | Features | Recommended service |
Fig 100 Hammer Union | 1,000 psi(69 bar) | u Pressure-tight make-up with hammer | Manifold and line connections |
u Economical,low-pressure union | |||
Fig 200 Hammer Union | 2,000 psi(138 bar) | u Economical,general-purpose union | General-service manifolds and lines |
u 1-to 4-inch sizes | |||
u Butt-weld available | |||
Fig 206 Hammer Union | 2,000 psi(138 bar) | u O-ring in male sub improves sealing and protects metal-to-metal seal against corrosion | Manifold and line connections,suction service,and corrosion service |
u Replaceable O-ring extends union | |||
u 1-to 10-inch sizes | |||
Fig 207 Hammer Union | 2,000 psi(138 bar) | u Parts are interchangeable with Figs.200 and 206 | To seal manifold connections and protect union threads |
u O-ring on blanking cap ensures a leak-free seal | |||
u Raised lugs on cap allow for make-up with a hammer | |||
u Cap can be tapped for pressure gauge if specified | |||
u Available in butt-weld | |||
Fig 211 Hammer Union | 2,000 psi(138 bar) | u Laminated insulating rings eliminate all metal-to-metal contact;insulating rings | For production systems with electrolytic corrosion problems |
u provide 35 million ohms resistance across the union | |||
u O-ring in male sub provides a positive primary seal | |||
u Seal ring in female sub provides a positive secondary seal | |||
u Insulating rings,O-ring,and seal ring can be replaced to extend union life | |||
Fig 400 Hammer Union | 4,000psi(276 bar)through 4-inch sizes; | u 21/2-through 12-inch sizes have O-rings for primary seal | Manifold and line connections,pump suction,and mud service |
2,500psi(172 bar)through 5 to 12-inch sizes | u Butt-weld available | ||
u Available for sour gas service:2,500 psi suction,(172 bar)cold working pressure, 5-through 12-inch sizes;4,000psi (276 bar) coldworking pressure, 1-through 4-inch sizes | |||
Fig 600 Hammer Union | 6,000psi(414 bar) | u Bronze seat provides primary seal;will not rust in water services | Steam service,boiler connections, manifold,and line connections for production,drilling,and well servicing |
Fig 602 Hammer Union | 6,000psi(414 bar) | u Compact | Manifold and line connections and mud service |
u Replaceable,lip-type seal provides primary seal,protects secondary metal-to-metal seal,and minimizes flow turbulence | |||
u Butt-weld available | |||
u Available for sour gas service:6,000 psi (414 bar)cold working pressure | |||

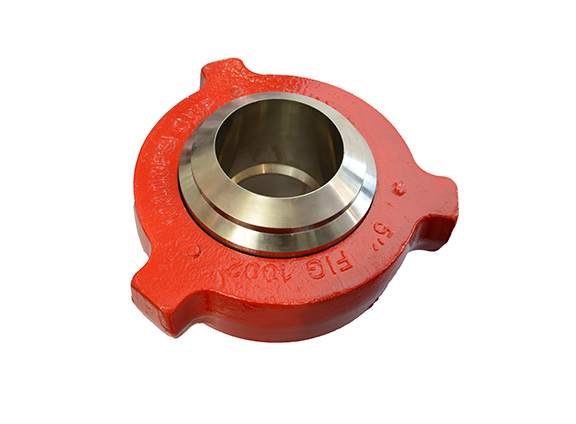

Fig 1002 Hammer Union | 10,000psi(690 bar)through 4-inch sizes; 7,500 psi(517bar),5-and 6-inch sizes | u Replaceable,lip-type seal provides primary seal,protects secondary metal-to-metal,and minimizes flow turbulence | Cementing,fracturing,acidizing,testing, and choke-and-kill lines |
u Butt-weld available | |||
u Available for sour gas service:7,500 psi (517 bar)cold working pressure | |||
u 5-and 6-inch sizes have O-rings for primary seals | |||
Fig 1003 Hammer Union | Misaligning union | u Ball seat provides positive seal with up to 71/2misalignment;2-inch model up to 4° | For high-pressure connections where lines cannot be aligned |
10,000 psi(690 bar)2-and 3-inch sizes; | u Replacement O-ring on male sub provides primary seal,and protects metal-to-metal seal against abrasion and corrosion | ||
7,500psi(517 bar),4and5 inch sizes | u Hammer union connection:available with threaded or butt-weld ends | ||
Fig 1502 Hammer Union | 15,000 psi(1034 bar) | u Replaceable,lip-type seal provides primary seal,protects secondary metal-to-metal seal,and minimizes flow turbulence | Cementing,fracturing,acidizing,testing, and choke-and-kill lines |
u Butt-weld available | |||
u Available for sour gas service:10,000 psi (690 bar)cold working pressure;butt- weld or non pressure-thread seal configurations only | |||
Fig 2002 Hammer Union | 20,000 psi(1380 bar) | u Replaceable,lip-type seal provides primary seal,protects secondary metal-to-metal seal,and minimizes flow turbulence | Cementing,fracturing,acidizing,testing, and choke-and-kill lines |
u 2 and 3-inch line sizes | |||
u Butt-weld configurations only | |||
Fig 2202 Hammer Union | 15,000 psi(1034 bar) | u Meets National Association of Corrosion Engineers Standard MR-01-75 and American Petroleum Institute RP-14E | Especially designed for sour gas service |
u Heat-treated components are 100% tested for hardness | |||
u Fluoroelastomer seal rings | |||
u Butt-weld only | |||
u Stamped"sour gas"using low-stress dot stamping and painted with a green zinc-chromate primer to assure quick identification | |||
