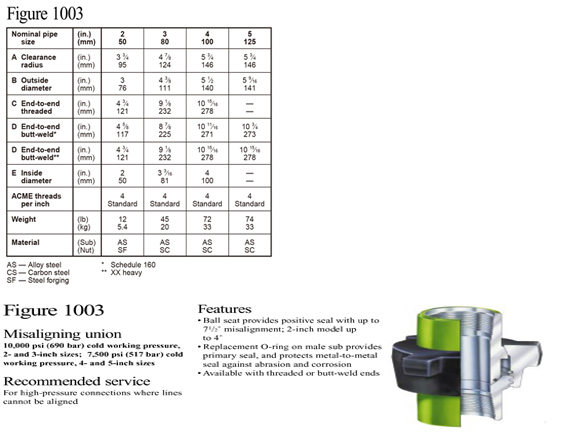

Fig 1003 Hammer Union

Working Pressure:

Misaligning union

10,000psi(690 bar), 2-and 3-inch sizes;

7,500psi(517 bar), 4 and 5 inch sizes

Features:

• Ball seat provides positive seal with up to 71/2misalignment;2-inch model up to 4°

• Replacement O-ring on male sub provides primary seal,and protects metal-to-metal seal against abrasion and corrosion

• Hammer union connection:available with threaded or butt-weld ends

Recommended Service:

For high-pressure connections where lines cannot be aligned
