Centrifugal Pump

Centrifugal Pump

Centrifugal Pump

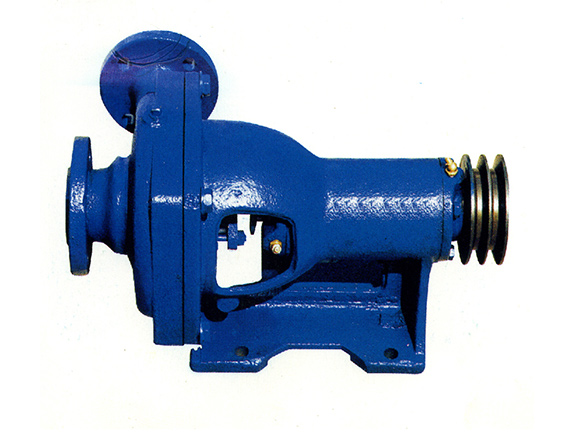

32PL
32PL with motor

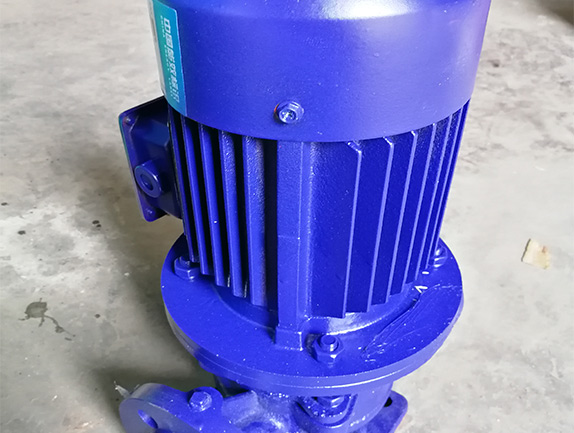

IRG40-100

A centrifugal pump is a pump that delivers liquid by centrifugal force generated when the impeller rotates.

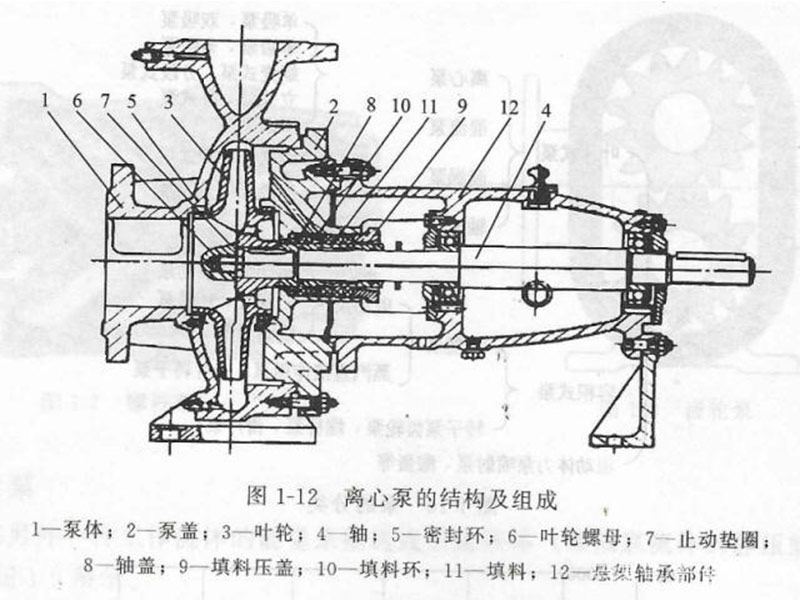

Structural Features of Centrifugal Pumps:


In a volute-shaped pump casing, an impeller that can rotate rapidly is installed, and there are 2 to 8 blades on the impeller. There are two interfaces on the pump casing. The inlet to the center of the impeller is the inlet, which is connected with the suction pipeline. The tangential line of the pump casing is the outlet and is connected to the discharge pipeline. The main working part of the centrifugal pump is the impeller. Followed by the suction chamber, the pump body (pump), the pump cover, the shaft seal device, the axial force balance device, the bearing, the coupling, the bracket, the extrusion chamber, and the like. When the impeller rotates, the liquid can continuously suck from the suction port, discharge from the discharge port, and cause the liquid to generate pressure and discharge it to a high place.








Contact us


Types of Centrifugal Pump:

Centrifugal pumps are available in vertical, horizontal, single-stage, multi-stage, single-suction, double-suction, self-priming and other forms.


Centrifugal pump manufacturers Dezhou Rundong Petroleum Machinery Co., Ltd, can provide 32PL centrifugal pump for Bomco triplex piston pumps, and IRG40-100 vertical piping centrifugal pump for Honghua 3NB1600HL mud pump etc. And their centrifugal pump parts can also be provided.


They were mainly used for spraying, cooling and lubricating to mud pump liner and mud pump piston of oil drilling mud pumps; also for carrying fresh water with temperature<80 or sewage containing a small amount of sediment. The advantages are balanced operation, low noise and longer service life.


Other small centrifugal pump can also be provided, such as IS series, ISG series, CYZ series, AY series, RY series centrifugal pump.
