Cementing Head Double Plugs Type

Cementing Head Double Plugs Type

Cementing Head Double Plugs Type
Cementing Head Double Plugs Type

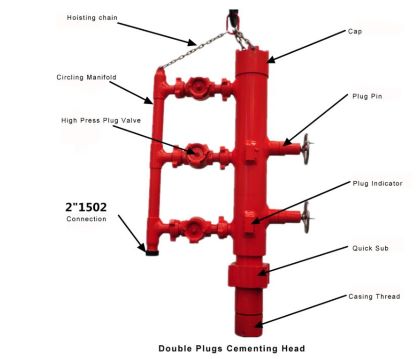

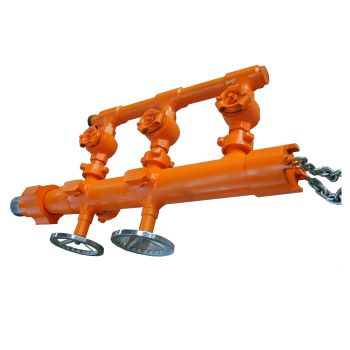

Double plugs cementing head is special tool for pumping slurry and releasing plug.It can couple with two plugs simultaneously,and makes the drilling fluid
fill into casing in turn and quickly.This can simplify the cementing operation, prevent cement pollution.


Contact us

Features
Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
It is manufactured utilizing API grade steels with API 8 round, buttress and premium threads.
Double balance pipe is developed.
Positive lever indicates plug releasing.
Main parts are made from AISI4145H alloy steel.
Top cover and union nut with large trapezoidial-threaded.
It makes the tool convenient to disassemble and carry.









Specifications(in)

Φ139.7

Φ177.8

Φ193 .7

Φ244.5

Φ273

Φ339.7

(5½")

(7")

(7⅝")

(9⅝")

(10¾")

(13⅜")

Overall-Length, mm

1950

2020

2020

2360

2360

2440

Manifold

2" 1502Union

I.D. of Plug Container, mm

Φ125

Φ160

Φ175

Φ225

Φ250

Φ320

Length of Plug Container,mm

400

450

450

550

550

600

Working Pressure, MPa

35,50

35,50

35,50

35,50

35

21
