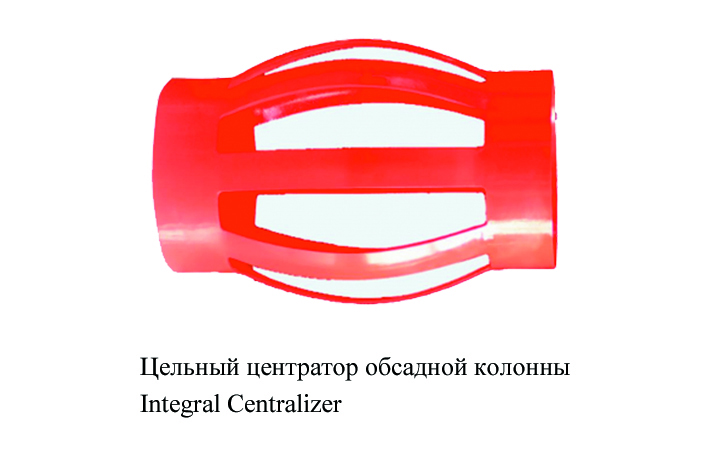

Integral Centralizer

Integral Centralizer

Integral Centralizer

Revolutionary centralizer design for highly deviated, horizontal ERD wells. One-piece integral unit has no weak point. It’s extremely robust and also tolerant to under gauge hole conditions.


Contact us

Product feature


1. Integral steel plate     2. High temperature wire saw welding

3. Laser cutting         4. Bow centralizer be Hydroform

5. Heat treatment        6. Powder coating processing


PRODUCT SUPERIORITY

1. Processing technology of high precision meet the requirements of various size hole
2. Down, there is no initial resistance, low friction, low torque
3. Centered, enhanced string restoring force
4. Weak spot, high strength, no stress, high reliability

5. Without any separation of welding components or parts, eliminate the possibility of salvage
6. its elasticity can meet down into reducing interval

7. All the indexes exceed the standard API lifter
8. Article, straight centralizer design maximum casing running efficiency
9. Article, centralizer design and casing is a good joint, casing protection


Technical parameters

SpecificationI.D.O.D.HeightWeight
13-3/8"*17-1/2"343+3445±3550±210.6KG
9-5/8"*12-1/4"248+3311±3400±25.8KG
7"*8-1/2"181+3216±3350±24.3KG
